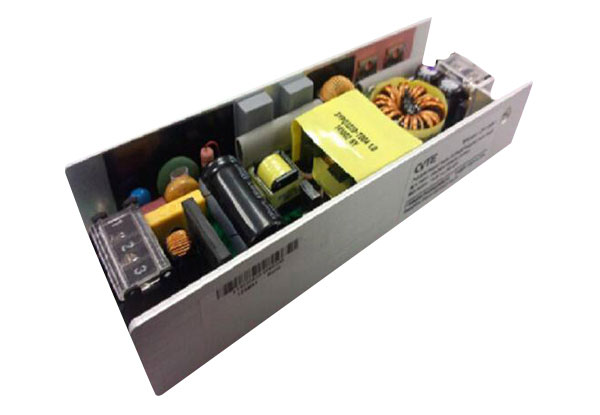

P.CPP.125BN.1--125W SLIM POWER SUPPLY,1+1Backups
Designing comply with request of the latest environment and certificate
►High power density:160mm×54mm×30mm►Damp proofing
►LED Display
►Leakage Current: Less than 0.5mA
►Altitude:5000m
►No damage with input 300VAC at 10s
►Ventilation cooling
|
Model |
Item |
N4.2 |
N4.6 |
N5 |
N7.5 |
|
Output |
DC Voltage |
4.2V |
4.6V |
5V |
7.5V |
|
Current Range |
0-25A |
0-25A |
0-25A |
0-16.6A |
|
|
Rated Power |
105W |
115W |
125W |
125W |
|
|
Ripple & Noise |
200mV |
200mV |
200mV |
300mV |
|
|
Voltage Tolerance |
±3% |
±3% |
±3% |
±3% |
|
|
Input |
Voltage Range |
180-264V |
100-264V |
100-264V |
100-264V |
|
Efficiency |
84% |
85% |
86% |
87% |
|
|
Inrush Current |
60A |
60A |
60A |
60A |
|
|
PF Factor |
≥0.5 |
≥0.5 |
≥0.5 |
≥0.5 |
|
|
Protection |
Over Load |
Over current120%~180%,can auto-recover remove abnormal |
|||
|
Over Voltage |
Can auto-recover after remove abnormal. |
||||
|
Environment |
Operating Temperature |
-20℃-70℃ |
|||
|
Storage Temperature |
-40℃-85℃ |
||||
|
Certificates |
|
|
|
|
|
|
Remark |
All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||
|
User need to refer temperature drop curve and input voltage drop curve |
|||||
|
Can select I/P 90-132Vac no PFC request ,can configure no backup circuit request |
|||||
