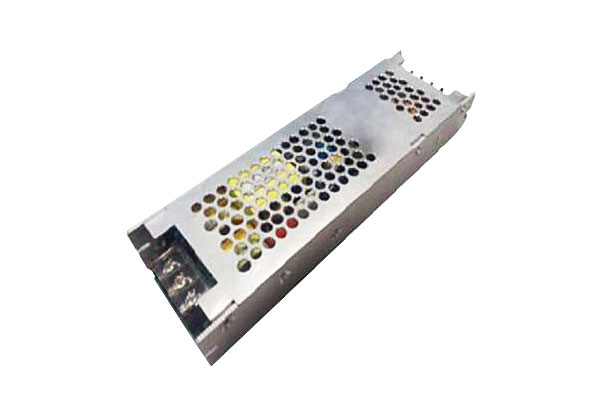

P.CPP.200SP.1--200W SLIM POWER SUPPLY (UL/CB/CE)
Designing comply with request of the latestenvironment and certificate
►High power density:208mm*60mm*30mm
►Damp proofing
►LED Display
►Leakage Current: Less than 0.5mA
►Altitude:5000m
►No damage with input 300VAC at 10s
►Ventilation cooling
►Complied with EMC standards:GB9254/EN55022A CLASSB
|
Model |
Item |
N24 |
N36 |
N48 |
P24 |
P36 |
P48 |
||
|
Output |
DC Voltage |
24V |
36V |
48V |
24V |
36V |
48V |
||
|
Current Range |
0-8.3A |
0-5.55A |
0-4.16A |
0-8.3A |
0-5.55A |
0-4.16A |
|||
|
Rated Power |
200W |
200W |
200W |
200W |
200W |
200W |
|||
|
Ripple & Noise |
240mV |
200mV |
200mV |
200mV |
200mV |
200mV |
|||
|
Voltage Tolerance |
±3% |
±3% |
±3% |
±3% |
±3% |
±3% |
|||
|
Input |
Voltage Range |
176-264V |
176-264V |
176-264V |
90-264V |
90-264V |
90-264V |
||
|
Efficiency |
84% |
85% |
86% |
85% |
87% |
88% |
|||
|
Inrush Current |
100A |
100A |
100A |
100A |
100A |
100A |
|||
|
PF Factor |
≥0.5 |
≥0.5 |
≥0.5 |
≥0.95 |
≥0.95 |
≥0.95 |
|||
|
Protection |
Over Load |
Over current120%~180%,can auto-recover remove abnormal |
|||||||
|
Over Voltage |
LATCH OFF |
||||||||
|
Over Temperature |
Recover |
||||||||
|
Environment |
Operating Temperature |
-20℃-70℃ |
-40℃-70℃ |
||||||
|
Storage Temperature |
-40℃-85℃ |
||||||||
|
Certificates |
|||||||||
|
Remark |
All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||||||
|
User need to refer temperature drop curve and input voltage drop curve |
|||||||||
|
Can select I/P 90-132Vac no PFC request |
|||||||||
