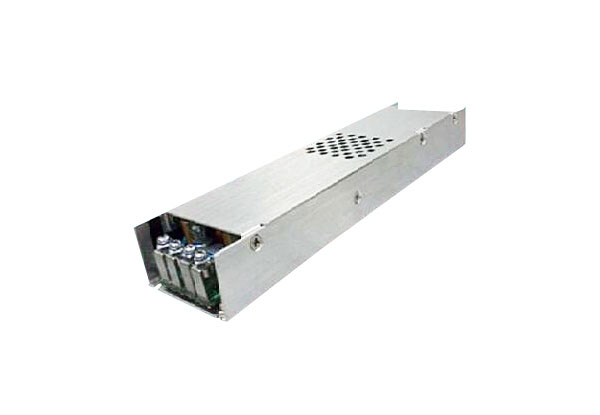

P.CPP.300SP.1--300W SLIM POWER SUPPLY（TUV CB/UL/CE）
Designing comply with request of the latestenvironment and certificate
►High power density:235mm×61mm×30mm
►Damp proofing
►LED Display
►Leakage Current: Less than 0.5mA
►Altitude:5000m
►No damage with input 300VAC at 10s
►Ventilation cooling
►Complied with EMC standards:GB9254/EN55022A CLASSB
|
Model |
Item |
N5 |
N7.5 |
P5 |
P7.5 |
P12 |
|||
|
Output |
DC Voltage |
2.8-5V |
7.5V |
2.8-5V |
7.5V |
12V |
|||
|
Current Range |
0-60A |
0-40A |
0-60A |
0-40A |
0-25A |
||||
|
Rated Power |
168-300W |
300W |
168-300W |
300W |
300W |
||||
|
Ripple & Noise |
200mV |
200mV |
200mV |
200mV |
240mV |
||||
|
Voltage Tolerance |
±3% |
±3% |
±3% |
±3% |
±3% |
||||
|
Input |
Voltage Range |
176-264V |
176-264V |
90-264V |
90-264V |
90-264V |
|||
|
Efficiency |
85% |
86% |
88% |
90% |
91% |
||||
|
Inrush Current |
120A |
120A |
100A |
100A |
100A |
||||
|
PF Factor |
≥0.5 |
≥0.5 |
≥0.95 |
≥0.95 |
≥0.95 |
||||
|
Protection |
Over Load |
current120%~180%,,LATCH OFF |
|||||||
|
Over Voltage |
LATCH OFF |
||||||||
|
Over Temperature |
LATCH OFF |
||||||||
|
Environment |
Operating Temperature |
-20℃-70℃ |
-40℃-70℃（Can work well at -50℃ when voltage rang is 180-264V ） |
||||||
|
torage Temperature |
-40℃-85℃ |
||||||||
|
Certificates |
TUV(CB),UL |
||||||||
|
Remark |
All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||||||
|
User need to refer temperature drop curve and input voltage drop curve |
|||||||||
|
Can configure no backup circuit request |
|||||||||
