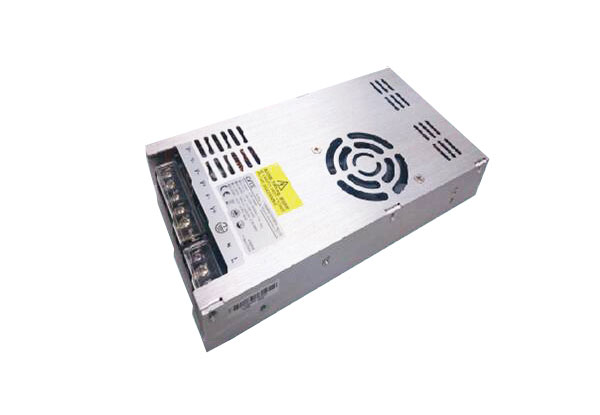

P.CPP.300FP.1-300W,Cooling by fan, PWM adjusting function
►按最新环保，安规要求设计
Designing comply with request of the latest
environment and certificate
►高功率密度/High power density:215mm×115mm×30mm
►防潮处理/Damp proofing
►LED电源显示/LED Display
►漏电流小于0.5mA/Leakage Current: Less than 0.5mA
►符合海拔5000m高度要求/ Altitude:5000m
►300VAC输入10S内机台无损坏
No damage with input 300VAC at 10s
►自带风扇强制散热/Cooling by fan
►EMC符合：GB9254，EN55022A CLASSB
Complied with EMC standards:GB9254，EN55022A CLASSB
►PWM调节功能：预留PWM输入接口，通过软件调节输出电压
以改善LED长时间使用引发的光衰的影响。
PWM adjusting function: leave PWM input port, adjust output
voltage by soft system to improve luminance decrease of
LED which be leaded by long time use.
|
型号/Model |
项目/Item |
P5 |
P7.5 |
P5VH |
P12 |
|
输出 |
直流电压/DC Voltage |
3.5-5V |
7.5V |
3.5-5V |
12V |
|
电流范围/Current Range |
0-60A |
0-40A |
0-60A |
0-25A |
|
|
额定功率/Rated Power |
210-300W |
300W |
210-300W |
300W |
|
|
纹波与噪声/Ripple & Noise |
200mV |
200mV |
200mV |
240mV |
|
|
电压精度/Voltage Tolerance |
±3% |
±3% |
±3% |
±3% |
|
|
输入 |
电压范围/Voltage Range |
90-264V |
90-264V |
180-310V |
90-264V |
|
效率/Efficiency |
86% |
87% |
86% |
91% |
|
|
浪涌电流/Inrush Current |
100A |
100A |
100A |
100A |
|
|
PF值/PF Factor |
≥0.95 |
≥0.95 |
≥0.95 |
≥0.95 |
|
|
保护 |
过负载/Over Load |
120%-180%过流，故障排除可恢复Over current 120%~180%,can auto-recover remove abnormal |
|||
|
过电压/Over Voltage |
LATCH OFF |
||||
|
过温度/Over Temperature |
故障排除可恢复/Can auto-recover after remove abnormal. |
||||
|
环境 |
工作温度/Operating Temperature |
-40℃-70℃ |
|||
|
储存温度/Storage Temperature |
-40℃-85℃ |
||||
|
备注 |
1.如未特殊说明，所有规格参数均在输入220Vac，额定负载，25度环境温度下进行量测/All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||
|
2.在实际应用中需参考温度降额曲线及输入电压降额曲线/User need to refer temperature drop curve and input voltage drop curve |
|||||
|
3.P5VH为配置280Vac+_10%输入要求。/P5VH configuration request input 280Vac+/-10% |
|||||
