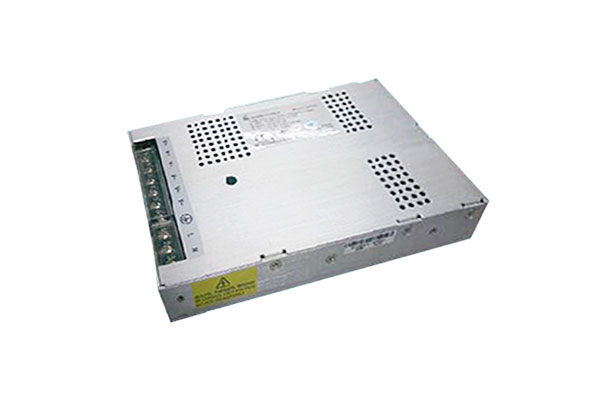

P.CPP.300CP.1-300W slim power supply,PWM adjusting function
Designing comply with request of the latest environment and certificate
►High power density:188.5mm×116mm×26mm
►Damp proofing
►LED Display
►Leakage Current: Less than 0.5mA
►Altitude:5000m
►No damage with input 300VAC at 10s
►Ventilation cooling
►Complied with EMC standards:GB9254，EN55022A CLASSB
►PWM adjusting function: leave PWM input port, adjust output
voltage by soft system to improve luminance decrease of
LED which be leaded by long time use.
|
Model |
Item |
P3.3 |
P4.2 |
P4.6 |
P5 |
|
Output |
DC Voltage |
3.3V |
4.2V |
4.6V |
5V |
|
Current Range |
0-60A |
0-60A |
0-60A |
0-60A |
|
|
Rated Power |
300W |
300W |
300W |
300W |
|
|
Ripple & Noise |
150mV |
150mV |
200mV |
200mV |
|
|
Voltage Tolerance |
±3% |
±3% |
±3% |
±3% |
|
|
Input |
Voltage Range |
90-264V |
90-264V |
90-264V |
90-264V |
|
Efficiency |
86% |
87% |
87% |
88% |
|
|
Inrush Current |
20A |
20A |
20A |
20A |
|
|
PF Factor |
≥0.95 |
≥0.95 |
≥0.95 |
≥0.95 |
|
|
Protection |
Over Load |
Over current 120%~180%,can auto-recover remove abnormal |
|||
|
Over Voltage |
LATCH OFF |
||||
|
Over Temperature |
Can auto-recover after remove abnormal. |
||||
|
Environment |
Operating Temperature |
-40℃-70℃ |
|||
|
Storage Temperature |
-40℃-85℃ |
||||
|
Remark |
All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||
|
User need to refer temperature drop curve and input voltage drop curve |
|||||
