Designing comply with request of the latest environment and certificate

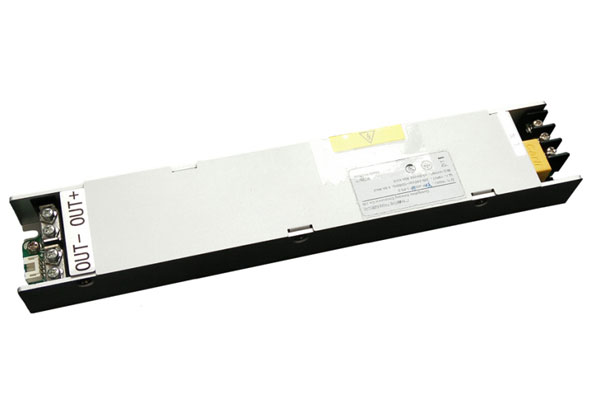

►High power density:250mm×45mm×25mm
►Damp proofing
►LED Display
►Leakage Current: Less than 0.5mA
►Altitude:5000m
►No damage with input 300VAC at 10s
►Ventilation cooling
►Complied with EMC standards:GB9254，EN55022A CLASSB
|
Model |
Item |
P4.2 |
P4.6 |
P5.0 |
|||||
|
Output |
DC Voltage |
4.2V |
4.5V |
5.0V |
|||||
|
Current Range |
0-80A |
0-80A |
0-80A |
||||||
|
Rated Power |
200W |
200W |
200W |
||||||
|
Ripple & Noise |
250mV |
250mV |
250mV |
||||||
|
Voltage Tolerance |
±3% |
±3% |
±3% |
||||||
|
Input |
Voltage Range |
90-264V |
90-264V |
90-264V |
|||||
|
Efficiency |
90% |
91% |
91% |
||||||
|
Inrush Current |
100A |
100A |
100A |
||||||
|
PF Factor |
≥0.95 |
≥0.95 |
≥0.95 |
||||||
|
Protection |
Over Load |
Over current 120%~180%,can auto-recover remove abnormal |
|||||||
|
Over Voltage |
LATCH OFF |
||||||||
|
Over Temperature |
Can auto-recover after remove abnormal. |
||||||||
|
Environment |
Operating Temperature |
-20℃-70℃ |
-40℃-70℃（Can work well at -50℃ when voltage rang is 180-264V ） |
||||||
|
Storage Temperature |
-40℃-85℃ |
||||||||
|
Certificates |
|||||||||
|
Remark |
All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||||||
|
User need to refer temperature drop curve and input voltage drop curve |
|||||||||
