Designing comply with request of the latestenvironment and certificate

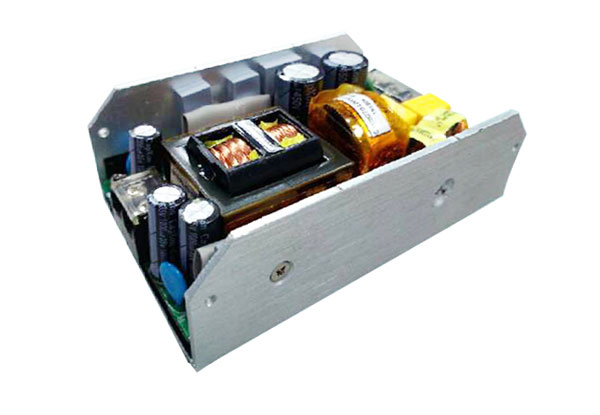

►High power density:127mm×81mm×40mm
►Damp proofing
►LED Display
►Leakage Current: Less than 0.5mA
►Altitude:5000m
►No damage with input 300VAC at 10s
►Ventilation cooling
►Complied with EMC standards:GB9254，EN55022A CLASSB
|
Model |
Item |
P12 |
P28 |
P36 |
P48 |
|
Output |
DC Voltage |
12V |
24-33V |
36V |
45-53V |
|
Current Range |
0-29A |
0-12.5A |
0-9.5A |
0-7.3A |
|
|
Rated Power |
350W |
350W |
350W |
350W |
|
|
Ripple & Noise |
250mV |
400mV |
400mV |
500mV |
|
|
Voltage Tolerance |
±3% |
±3% |
±3% |
±3% |
|
|
Input |
Voltage Range |
90-264V |
90-264V |
90-264V |
90-264V |
|
Efficiency |
86% |
87% |
88% |
88% |
|
|
Inrush Current |
100A |
100A |
100A |
100A |
|
|
PF Factor |
≥0.95 |
≥0.95 |
≥0.95 |
≥0.95 |
|
|
Protection |
Over Load |
Over current 120%~180%,can auto-recover remove abnormal |
|||
|
Over Voltage |
LATCH OFF |
||||
|
Over Temperature |
Can auto-recover after remove abnormal. |
||||
|
Environment |
Operating Temperature |
-40℃-70℃ |
|||
|
Storage Temperature |
-40℃-85℃ |
||||
|
Remark |
All spec. will be tested at input 220V,rate loading,25 ℃ ambient temperature if without special notice |
||||
|
User need to refer temperature drop curve and input voltage drop curve |
|||||
|
Can choice single assist voltage, acquiesce in 12V 3A when total power keep unchanging |
|||||
