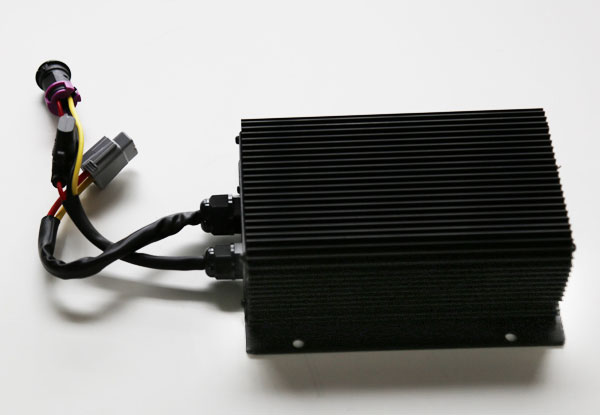

P.DCP.500W serious is a professional production for vehicle power supply， input voltage range: 48—144Vdc,output range: 12Vdc-24Vdc.
Production has the advantage of small size, high efficiency, high reliability and long life. meanwhile, has the functions of reverse battery protection, output short circuit protection and over-temperature protection.
|
Parameter |
P.DCP.500W.1 |
|
Input voltage range |
48～144Vdc |
|
Efficiency |
≥86%（full load） |
|
Rated output power |
500W |
|
Output voltage range |
12V-24Vdc |
|
Output current range |
0-42A |
|
Voltage stabilized accuracy |
≤±0.5% |
|
Voltage stabilized accuracy |
≤±0.5% |
|
Current ripple |
≤±1% |
|
Output current deviation |
≤±0.5A |
|
Audible noise |
≤55dB |
|
Operating temperature |
-30～＋55℃ |
|
Storage temperature |
-40～＋85℃ |
|
operating humidity |
≤95%,no condensed |
|
Protection Degree |
IP66 |
|
Cooling method |
Natural cooling |
|
Weight |
2.8KG |
|
Protection function |
input over voltage protection ，input under voltage protection, output overvoltage protection, over current protection, short circuit protection, over temperature protection and output under voltage protection. |
|
Dimension(W*D*H) |
200mm*140mm*71mm |
